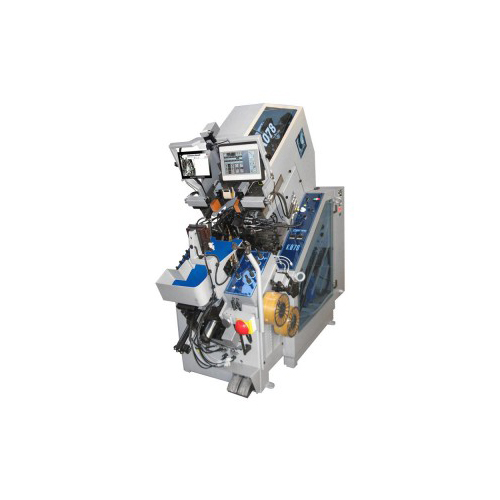

Toe Lasting Machine

Description

Pulling over and toe lasting machine full optional with TI

  • Adjustable in front and back part applicator
  • Applicator with interchanging head
  • Applicator with automatic left and right
  • Wipers system long lasting
  • 9 pincers
  • Revolving pincer 5
  • Last support double release (with mechanical detention for stop precision)
  • Setting position of pincers adjustable separately between the left and right pincers group
  • Setting position of pincers with horizontal opening for a quickly use of the different lasts models
  • Independent side bands and teflon band
  • Optical projector
  • Last support adjustment with external handles
  • Pressing pressure, teflon band, side bands, spoon wipers, climb applicator, low pressure pincers, pincers closing, all external adjustable with reading manometer
  • Tool box included
  • Single pincers opening
  • Video with program
  • Setting cOnnection with mod 140, 241S, 182, 230, 241

TECHNICAL DETAILS

  • Electric Power : 3 Kw
  • Working Pressure : 5 MPA
  • Dimensions : cm. 114(45") x 183(72") x 210(83")
  • Net Weight : Kg. 1100 (2425 LBS)
  • Daily Production : 250 pairs/hour
  • Gross Weight with Crate : Kg. 1300 (2866 LBS)
