Latex Spraying Machine

Latex Spraying Machine

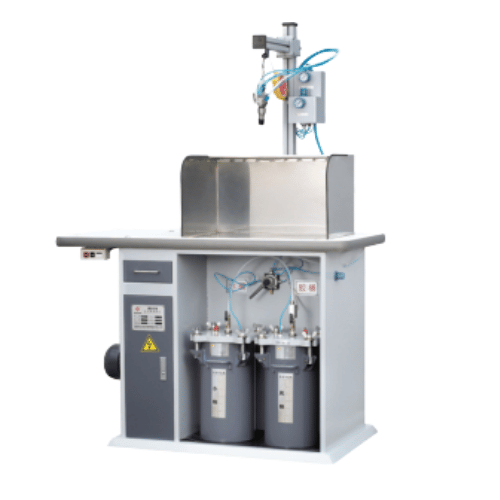

The Multi-Function Latex Spraying Machine is designed for efficient and uniform adhesive application in footwear manufacturing. It provides a reliable solution for spraying latex and water-based adhesives on various footwear components. Its advanced spraying system ensures consistent application, while the integrated suction and cleaning arrangements support cleaner and smoother operation.

Download PDF

Enquire About This Product

Description

* Suitable for spraying atomized latex and water-based adhesives.
* Designed for shoe uppers, linings and insoles.
* German-origin spray gun for precise application.
* Adjustable spraying area.
* Adjustable glue output for controlled application.
* Helps reduce adhesive consumption.
* Ensures uniform adhesive spraying.
* Integrated air suction system collects excess adhesive mist.
* Helps reduce environmental pollution.
* Improves workplace cleanliness and working conditions.
* Dual-tank design for separate cleaning operations.
* Allows easy washing of the spray gun and pipelines.
* Helps prevent clogging of the spray gun and pipelines.
* Supports smooth and reliable machine operation.

Specifications

Parameter Specifications
Machine Type Glue Spraying Machine
Voltage 220V / 50Hz
Power 0.55–1.5 kW
Working Area Up to 1315 × 455 mm
Overall Dimensions Approx. 1000–1400 × 570–590 × 1200–1210 mm
Net Weight Approx. 82–97.5 kg
Adhesive Compatibility White Glue, Yellow Glue, Water-Based Glue,
Oil-Based Glue and Environmentally Friendly Glue

Note: Specifications such as power, working area, dimensions and weight
may vary depending on the machine model.
