Description

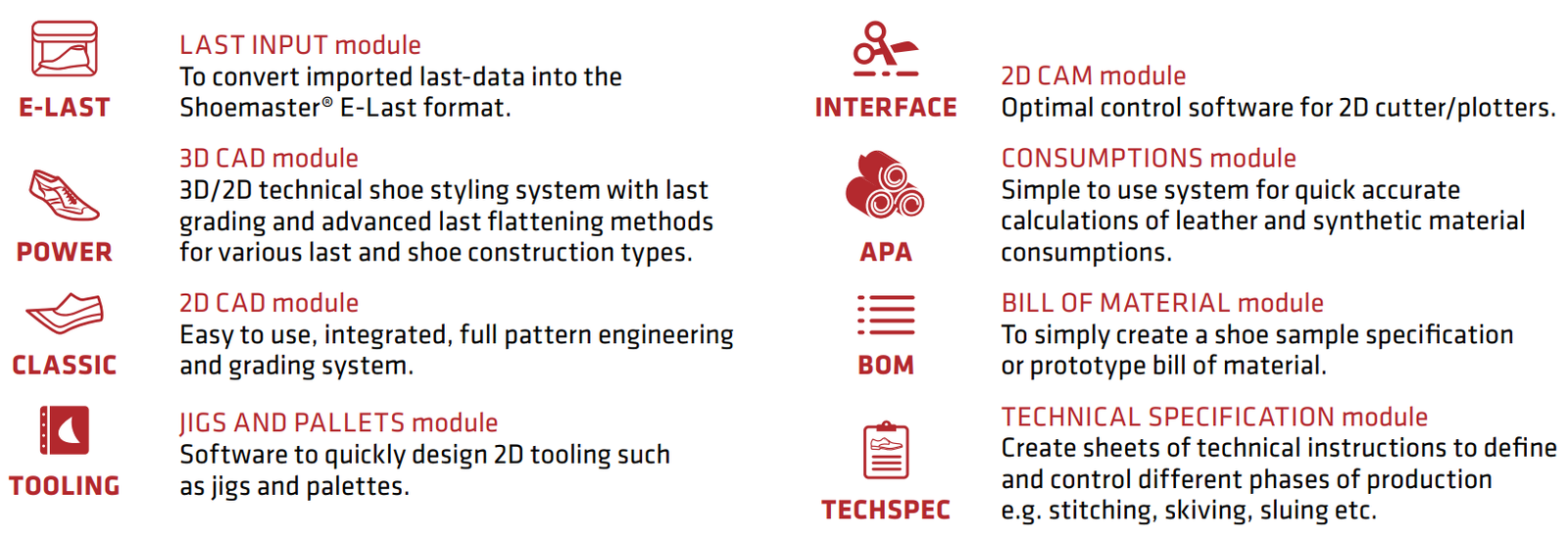

Shoemaster® ENGINEER Suite
- 2D / 3D Styling, pattern engineering and grading system.
- Fully customizable Graphic user interface.
- Customizable menus and tool bars.
- E-last import directly from last makers or scanners.
- Integrated DXF module for import of CAD files from other software.
- Accurate 3D flattening of both upper and bottom surface.
- Accurately control last flattening (Including Moccasin, Boots, Stitch Down, Strobel etc.)

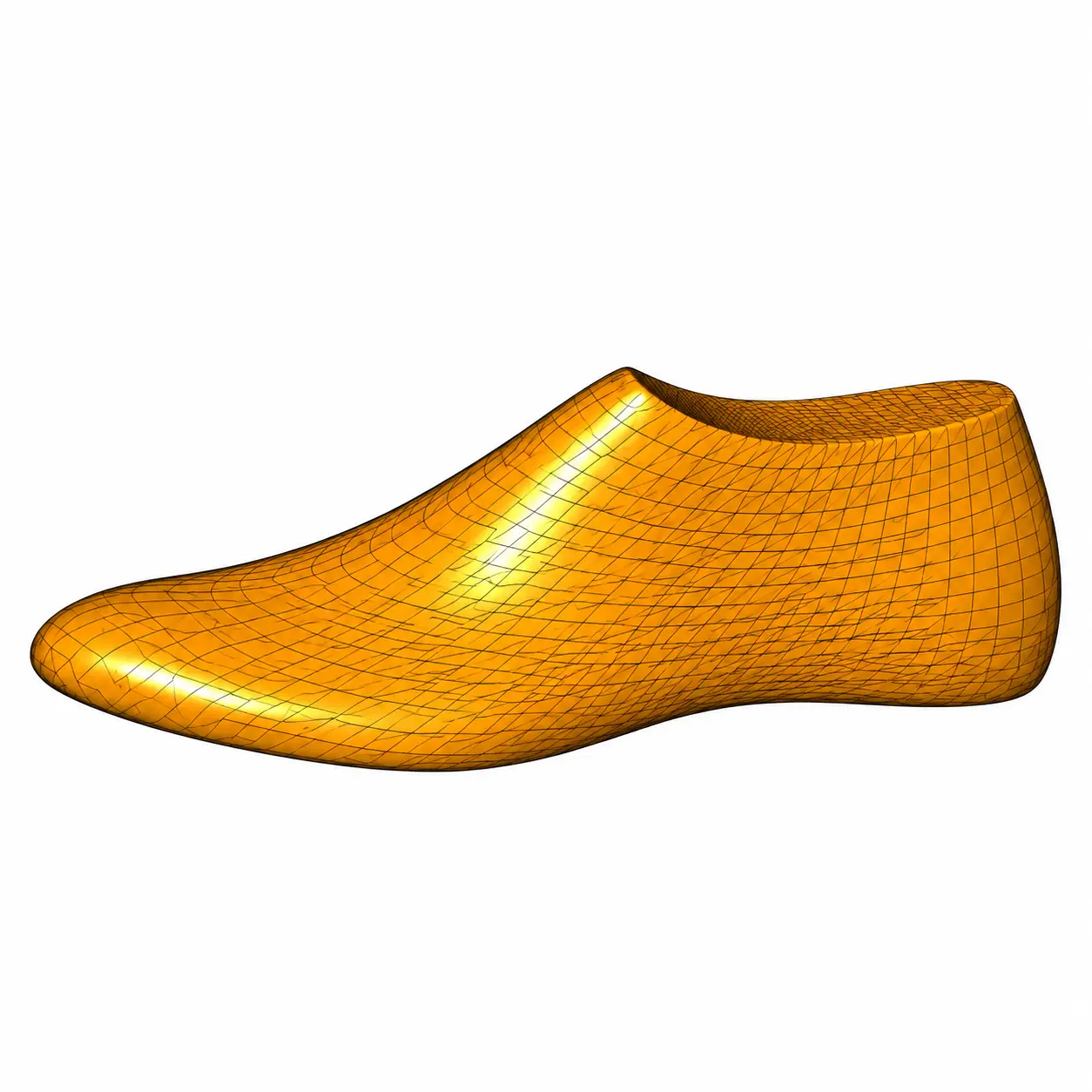

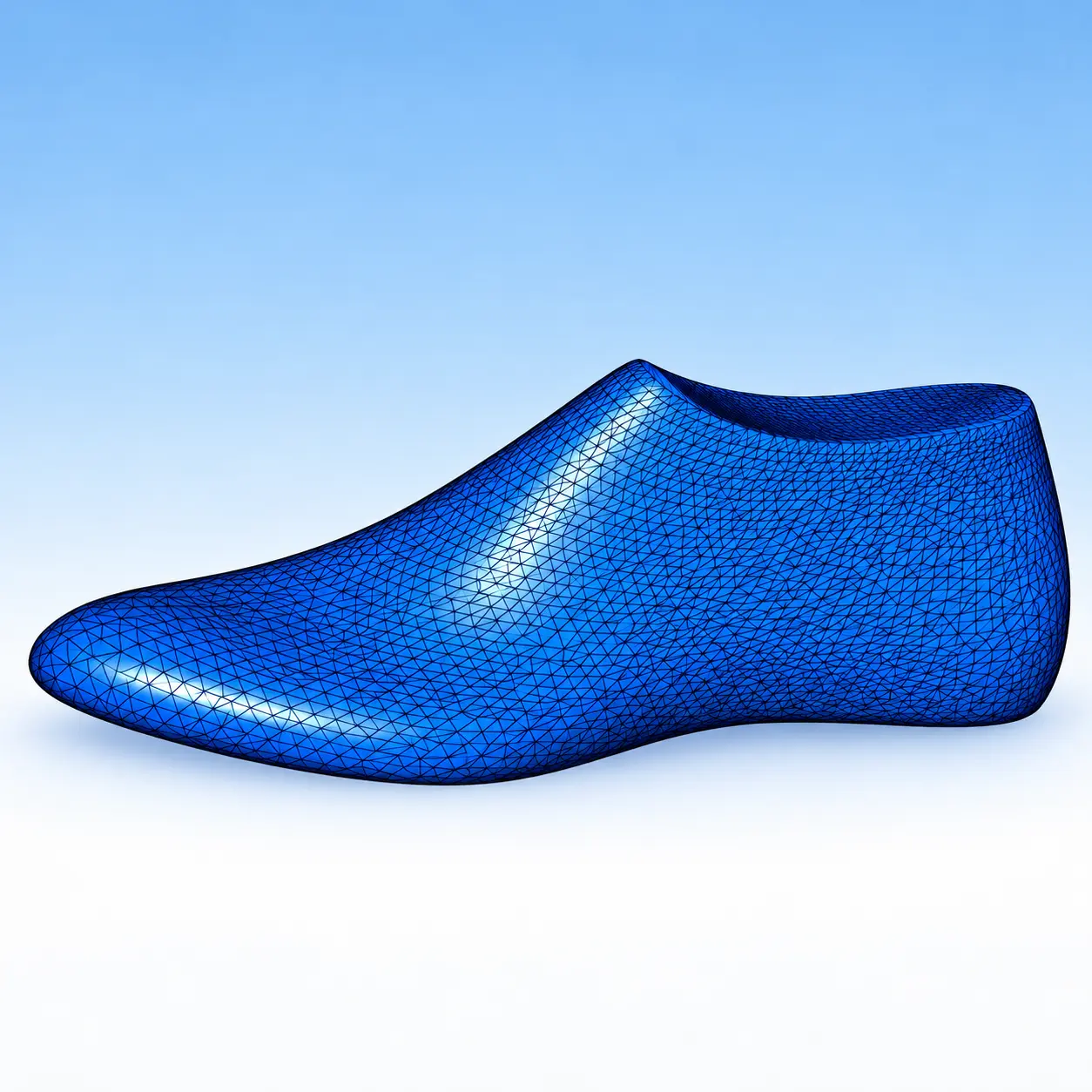

- Grade 3D lasts.
- Grade either English, Continental and Metric grading scales.

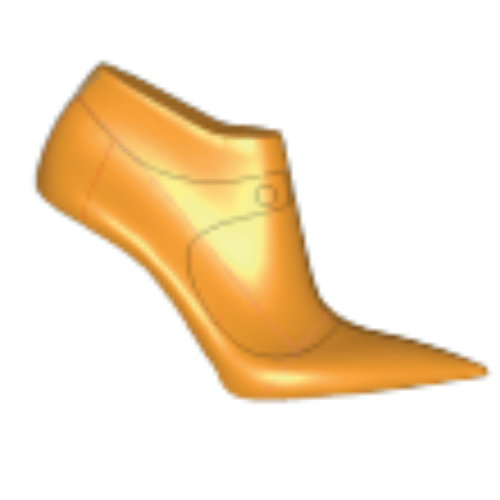

- Create designs directly on the 3D last.
- Adjust design simultaneously on 2D flattening and/or 3D.
- Digitise or scan patterns for input of shells and/or pieces.
- Mirror last (Right/Left foot)
- Simplified last modification functions such as centre/heel curve, smooth etc.
- Create complex patterns quickly and easily using piece collection process.
- Comprehensive last grading functions including centres, groups and restrictions.
- Separate lines or patterns into groups using colours representing linings, backers, stiffeners.
- Style Transfer from 3D to 3D (different lasts) 3D to 2D, 2D-2D. Complete 3D and 2D integration.
- Both manual and automatic springing options.
- Numerous line adjustment commands including mirror, tied lines, offset etc.
- 3D punch shape and line creation and ability to carry.
- Property window for display of various line, arc, piece information.
- Create 2D tooling layouts for auto-stitching pallets and marker templates.
- Add customisable text options to denote size, style name, piece name etc.
- Customizable size codes.
- 2D output of files in .dxf, .shc/.die for CNC cutting machines.
- Includes dedicated Interface software with nesting and output of data to various cutter/plotting devices.
