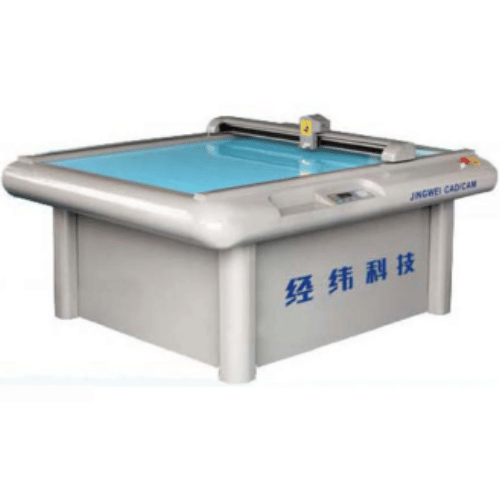

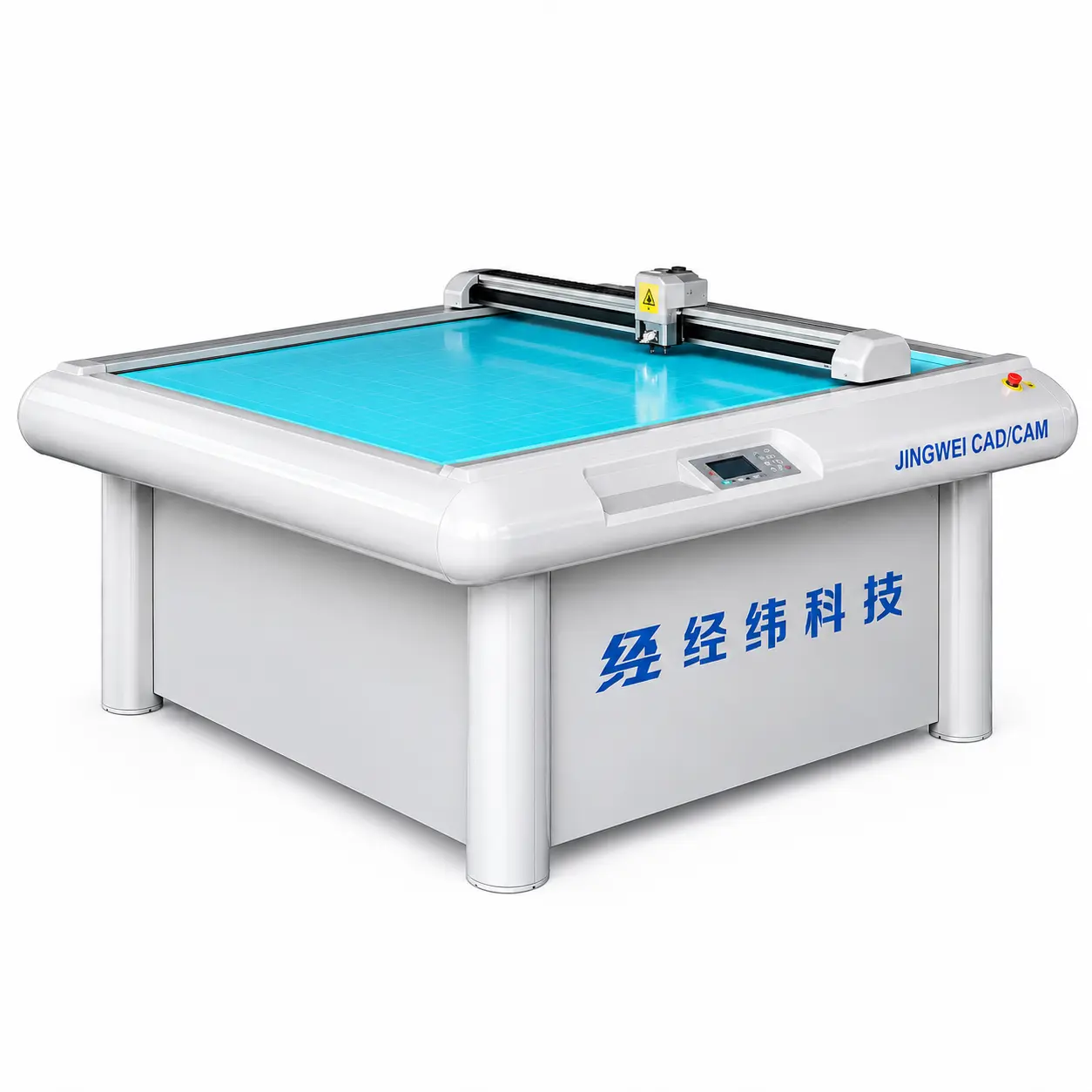

The Jingwei Cutting Plotter offers high-speed, precise cutting and plotting with an advanced digital servo motor system. Its dual-tool system supports versatile operations and is compatible with any CAD software. Featuring Ethernet and serial connectivity with HP-GL format support, it is ideal for garment, bag, automotive upholstery, furniture and gasket applications.


Download PDF

Enquire About This Product

Description

  1. Digital servo motor driver system enables superior speed and accuracy.
  2. Dual tool system, built in flexibility of cutting and plotting.
  3. Designed for diverse materials and industries.
  4. Able to work with any CAD software.
  5. Standard Ethernet/Serial Interfaces with HP-GL format.
  6. With top performance but reasonable price, to achieve the best-in-class cost performance, against “Graphtec”, “Mimaki” etc.

Specifications

Parameter Specifications
Machine Type Flatbed Cutting Plotter / Pattern CAD Grading Plotter
Application Pattern Making, CAD Grading, Drawing, Plotting and Cutting
Suitable Materials Cardboard, Kraft Paper, PVC Board, PU, Rubber Sheet, Marking Film and Other Suitable Materials
Working Area Available in Multiple Sizes, Including 900 × 600 mm, 1200 × 900 mm and 1500 × 900 mm
Cutting Speed Up to 1200 mm/s (depending on model)
Cutting Thickness 0.1–3.0 mm (depending on material and model)
Machine Resolution Up to 0.01 mm (depending on model)
Repeat Precision ≤ 0.05 mm (where applicable)
Programmable Resolution 0.025 / 0.01 / 0.1 mm (depending on model)
Drive System Servo Motor / Stepper Motor (depending on model)
Transmission System Synchronous Belt / Straight Rail (depending on model)
Media Fixation Method Vacuum Suction System (where applicable)
Tool Compatibility Pen, Ball Pen, Gel-Ink Pen and Cutting Blade (depending on model)
Interface Serial Port / Ethernet Port (depending on model)
Command Format HP-GL Compatible Format (where applicable)
Power Supply AC 220 V / 50 Hz (depending on model)
