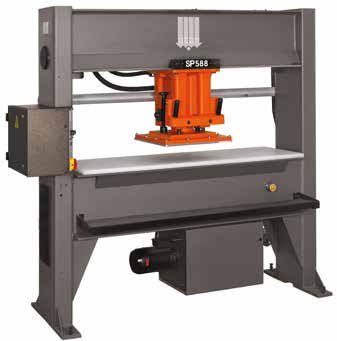

Travel Head Clicking Machine

It is a high-performance hydraulic cutting press with a movable trolley, offering precision, reliability and excellent cutting quality. Its exceptional trolley speed and low energy consumption ensure efficient operation. With adjustable cutting strokes of 100 mm or 150 mm, it handles varying material thicknesses and layers. Available in multiple sizes and configurations, it is ideal for footwear, leather, apparel, automotive and other industries.

Download PDF
Watch Video

Enquire About This Product

Description
Specifications

Description

* High-performance hydraulic cutting press with movable trolley.
* Exceptional trolley displacement speed.
* Low energy consumption.
* High operational reliability.
* Excellent cutting quality and precision.
* Wide range of machine sizes and configurations.
* Suitable for diverse industrial applications.
* Available in CE and non-CE versions.
* Adjustable cutting stroke up to 100 mm.
* Adjustable cutting stroke up to 150 mm.
* Cutting stroke options for different material thicknesses.
* Suitable for cutting multiple layers of material.
* Synchronized controls for safe operation.
* Protection barrier for enhanced operator safety.
* Accurate trolley displacement and cutting.
* Dynamic braking system for rapid trolley stopping.
* Reduced wear and tear on the motor gearbox.
* Optional manual or automatic material feeding systems.
* Optional programmable cut counter for quantity control and automatic stopping.
* 40-ton models available for high-resistance materials and large cutting dies.

Specifications

TECHNICAL DATA

AVAILABLE MODELS CE VERSION	WORKING AREA (mm)	TROLLEY SIZE (mm)	MAXIMUM CUTTING POWER (t – kN)	SIZES (H-W-L) (mm)	NET WEIGHT, WITH OIL (Kg)
S 588/3	1600×500	500×500	25 t – 245 kN	1940x1400x2200	1430
HS 588/3	1600×500	500×500	25 t – 245 kN	1940x1400x2300	1500
HS 588/10	2000×750	750×750	30 t – 294 kN	2360x1660x2500	2270
HS 588/11	2000×750	500×750	30 t – 294 kN	2360x1660x2500	2250
HS 588/14	2000×500	500×500	30 t – 294 kN	2380x1410x2500	1940
S 588/40	1600×650	650×650	40 t – 392 kN	2100x1400x2200	1975
HS 588/40	1600×650	650×650	40 t – 392 kN	2100x1400x2300	1985

AVAILABLE MODELS NON-CE VERSION	WORKING AREA (mm)	TROLLEY SIZE (mm)	MAXIMUM CUTTING POWER (t – kN)	SIZES (H-W-L) (mm)	NET WEIGHT, WITH OIL (Kg)
SP 588/3	1600×500	500×500	25 t – 245 kN	1940x1360x2200	1430
HSP 588/3	1600×500	500×500	25 t – 245 kN	1940x1360x2300	1500
HSP 588/10	2000×750	750×750	30 t – 294 kN	2360x1600x2500	2270
HSP 588/11	2000×750	500×750	30 t – 294 kN	2360x1600x2500	2250
HSP 588/14	2000×500	500×500	30 t – 294 kN	2380x1350x2500	1940
SP 588/40	1600×650	650×650	40 t – 392 kN	2100x1340x2200	1975
HSP 588/40	1600×650	650×650	40 t – 392 kN	2100x1340x2300	1985
